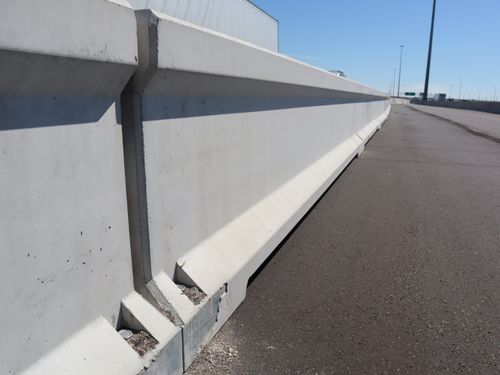

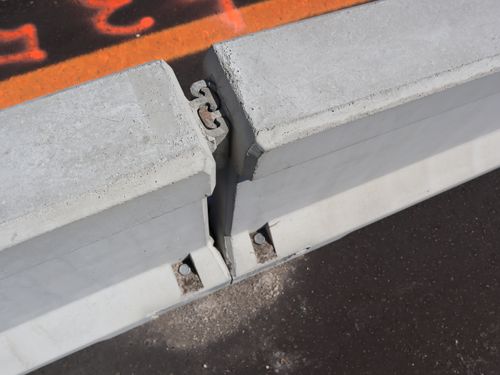

ZoneBloc®+ is a revolutionary portable concrete barrier system with Standard and Minimum Deflection options. ZoneBloc®+ is designed to minimize impact to the traveling public while offering a supreme level of protection. With a base width of only 11 ¾” (298.4 mm), the compact design is effective on projects where space is restricted. Its 40-foot (707.1 cm) standard unit is optimal for deployment and accelerates the installation process, when compared to traditional concrete barriers. ZoneBloc®+’s narrow footprint results in a light-weight configuration, which allows 280 feet (8534.4 cm) to be hauled on one flatbed truck, and ZoneBloc®+’s unique coupling system guarantees a safe and quick installation. Uses the Excalibur screwbolt system which only requires an embedment depth of 12” (304.8 mm) and is removable in both asphalt and concrete.

‍

Standard Deflection System

Meets MASH TL-3 with a dynamic deflection of 51.6” (1310.6 mm) and a working width 61.4” (1559.5 mm) with 4 screwbolts at each end only.

‍

Minimum Deflection

Meets MASH TL-3 with a dynamic deflection of 11.0” (279.4 mm) and a working width of 23.2” (589.2 mm) using 8 screwbolts per unit.
